Navigating through the Diagram Windows
The main Diagram window can have 'hot areas' which bring up child Diagram windows when clicked. The child Diagram window can also have 'hot areas' forming grandchildren and so on. These Diagram/Child windows can be accessed in the following ways.

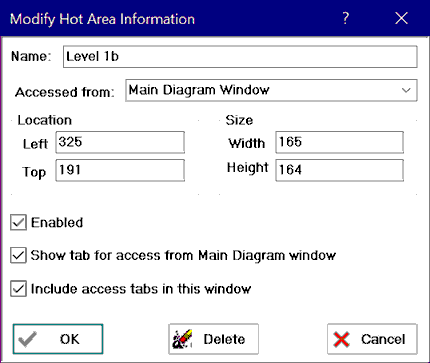

1. Each child diagram window and the Main Diagram window can be accessed by a tab at the top of the Diagram window. The tabs be hidden by unchecking the controls in the Modify Hot Area Information dialog. This dialog is accessed by right-clicking on the window while the Diagram window is configured in Development mode.
2. Holding the Ctrl and Shift keys down in Development or Application modes will draw a red border around all of the child window hot areas on a Diagram window. Clicking the left mouse button (in Application mode) in the hot area (but not on another control) will bring the Child diagram window to the front. Clicking the right mouse button within the red border in Development mode will bring up the Modify Hot Area dialog show above.
3. The Windows menu will show the Diagram window and all Child Diagram windows as menu flyouts. Selecting the Diagram or a Child diagram window from the Windows menu will bring it to the front and make it the active window.
