Fan3_CL

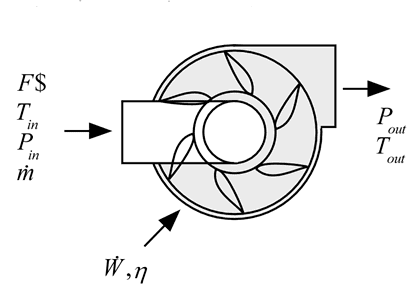

Fan3_CL provides a model of an airfoil bladed centrifugal fan that is based on curves for dimensionless pressure rise (DP/(rho*D^2*N^2)) as a function of dimensionless volumetric flow rate (V_dot/(D^3*N) and dimensionless power (W_dot/(rho*D^5*N^3)).  These curves were generated by collapsing performance data from the USF Centrifugal Fan Performance Supplement from Greenheck.

Inputs:

F$:  fluid string identifier

m_dot:  mass flow rate (kg/s)

T_in:  inlet temperature (K, C, F, or R)

P_in:  inlet pressure (bar, atm, Pa, kPa, or MPa)

N:  rotational speed (rev/s)

D:  blade diameter (m or ft)

Outputs:

P_out:  outlet pressure (bar, atm, Pa, kPa, or MPa)

W_dot:  power (W, kW, or Btu)

T_out:  outlet temperature (K, C, F, or R)

eta:  efficiency

Example:

$Load ComponentLibrary

$UnitSystem SI Mass J K Pa

$VarInfo DP units=Pa altUnits=inH2O

$VarInfo m_dot units=kg/s

$VarInfo P_out units=Pa

$VarInfo rho units=kg/m^3

$VarInfo T_out units=K

$VarInfo W_dot units=W altUnits=hp

F$='Air'

V_dot=6000 [cfm]*convert(cfm,m^3/s)

T_in=300 [K]

P_in=101325 [Pa]

rho=Density(Air, P=P_in,T=T_in)

m_dot=V_dot*rho

N=1500 [rev/min]*convert(rev/min, rev/s)

D=22 [inch]*convert(inch,m)

Call Fan3_CL(F$, m_dot, T_in, P_in, N, D: P_out, W_dot, T_out, eta)

DP=P_out-P_in

{Solution:

W_dot = 2755 [W] or 3.694 [hp]

DP = 727.7 [Pa] or 2.921 [in H2O]

eta = 0.748}
