**DuctSupplyTee_CL**

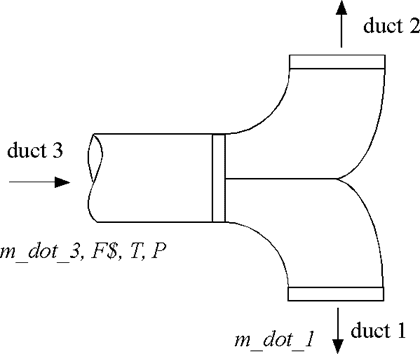

Returns the pressure drop associated with a supply duct with an equal area tee. The ducts have circular cross-section. The pressure drop should be applied to the flow in branch 1. The function calls the K_supply_tee function from the minor loss library.

DELTAP = **DuctSupplyTee_CL**(F$, m_dot_3, m_dot_1, T, P, A_3)

**Inputs:**

F$: fluid string identifier

m_dot_3: mass flow rate in main duct upstream of branch (kg/s, lbm/hr)

m_dot_1: mass flow rate in main duct downstream of branch (kg/s, lbm/hr)

T: inlet temperature (K, C, F, or R)

P: inlet pressure (bar, atm, Pa, kPa, or MPa)

A_3: upstream duct area (m^2 or ft^2)

**Output:**

DELTAP: pressure drop (bar, atm, Pa kPa, or MPa)

**Example: **

$UnitSystem SI Mass J K Pa Degree

$Load Component Library

$VarInfo DP units=Pa

m_dot_3 = 0.5 [kg/s]

m_dot_1 = 0.1 [kg/s]

T = 300 [K]

P = 100e3 [Pa]

A_3 = 0.1 [m^2]

F$ = 'Air'

DP = **DuctSupplyTee_cl**(F$, m_dot_3, m_dot_1, T, P, A_3)

{**Solution:**

DP = 5.122 [Pa]}
