Modify Symbol Color Plot

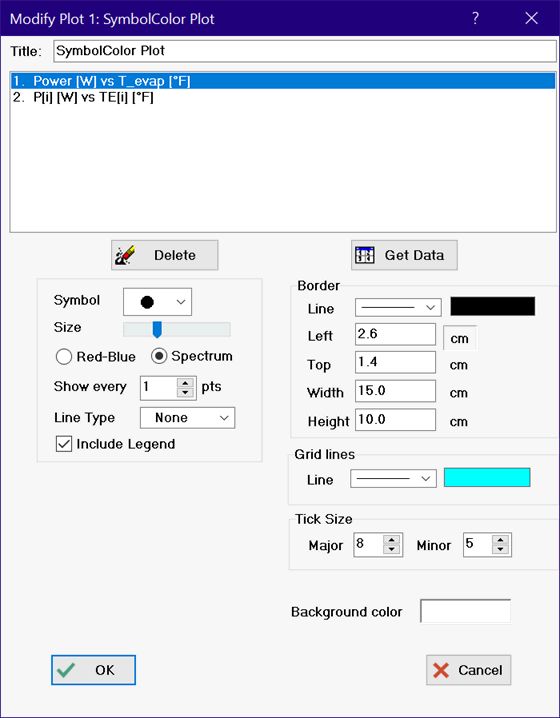

Right clicking or double-clicking on a Symbol Color plot will bring up the following dialog that can be used to change the appearance of the plot.





The symbol type, size, frequency and color scheme (Red to blue or Full Spectrum) may be changed from that selected when the plot was created.  The spectrum option shows contours using the full range of colors.  The Red/Blue option shows contours using just red and blue.  These colors are easier to relate to values Lines may be optionally drawn to connect the points.  If the Include Legend box is selected, a color legend will be provided to the right of the plot to relate the symbol color to the value of Z.







Modify Plot command
