CombustionGas_100, CombustionGas_200 and CombustionGas_400

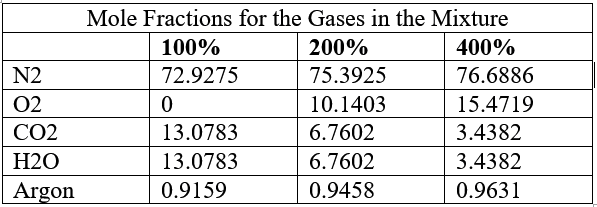

CombustionGas_100 provides the ideal gas properties of a gas mixture that representive of the gas resulting from complete combustion of a hydrocarbon fuel with 100% theoretical air. CombustionGas_200 and CombustionGas_400 provide the properties for the gas mixture with 200% and 400% theoretical air. The gas mixture consiists of CO2, O2, H2O, N2, and Ar with the mole fractions provided in the table.
The thermodynamic properties are applicable from 270 K to 6000 K. The transport properties are valid between 270 K and 3000 K.
Gas mixture properties were originally provided by Keenan, Chao, and Kay, Gas Table, Wiley, 2nd ed, 1983, but the properties provided for these mixtures are based on the property data for the pure gases in EES. The mole fractions were generated for a hydrocarbon fuel with H/C ratio of 2, but Keenan et al. indicate that the properties are not sensitive to this ration.
