New Plot Window

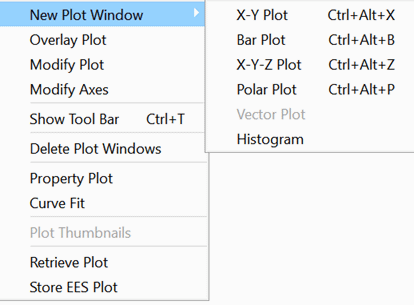

EES plots may be generated from data in the Parametric, Lookup, Arrays and Integral tables.  The New Plot window command will display a submenu showing the basic plot types that can be generated.   There is no intrinsic limit on the allowable number of plot windows.  All plot windows are saved with other program file information when the Save or Save As commands are applied.  Once created, the plots can be modified or copied using the Plot Window controls.


X-Y Plot

Bar Plot

X-Y-Z Plot

Polar Plot
